Process control
Check out our summary in image gallery format.
Our product range is broad, so we advise you to contact us if you have any questions or do not find what you are looking for.

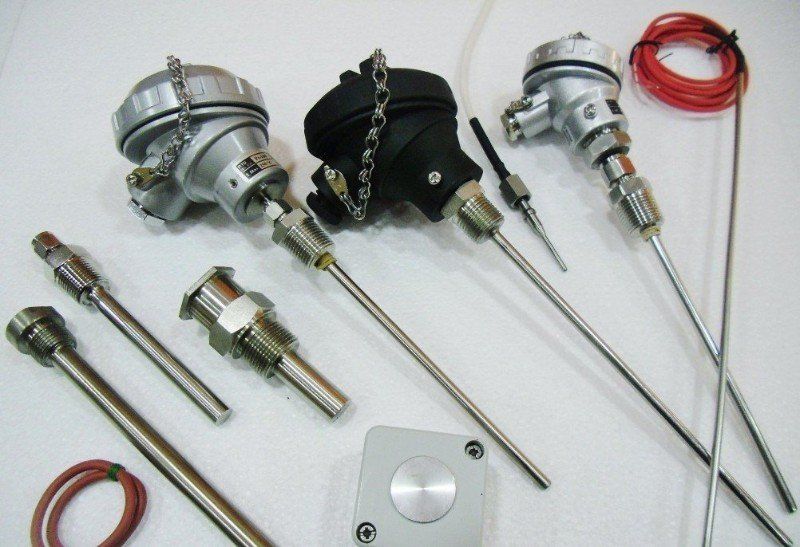

TEMPERATURE AND PID CONTROL PROBES
PRO-PT-100 AND THERMOPARTS
The measurement of temperature is a whole world. Consult your application and we will advise you on the model that best suits your process.
- Pt-100 probes (RTD)
- Termopares K, J. S, T ..
- ATEX sensors
- Special sensors for low temperature -197º C
- Protective covers for high temperature
- Thermowells or pods.
- Custom design
INDICATORS- CONTROLLERS AND PROCESS CONVERTERS
Display and temperature, pressure, level ... controllers in standard formats.
Basic equipment and with high benefits.
We advise you in the best option.
- Spectrum BS-2000(1 entry)
- Spectrum LS-3000(1 entry)
- Spectrum DS-4000(2 tickets)
- Spectrum MS-5000-HS7000 (2-3 entries)
- Spectrum RE70(1 entry)
- Spectrum RE72 (1 entry)
- Spectrum RE82 (1 input and ramp programmer)
- Basic indicators, range IS-N24
SUMMARY IN IMAGES:
MEASUREMENT EQUIPMENT, the highlights:
List of services
-

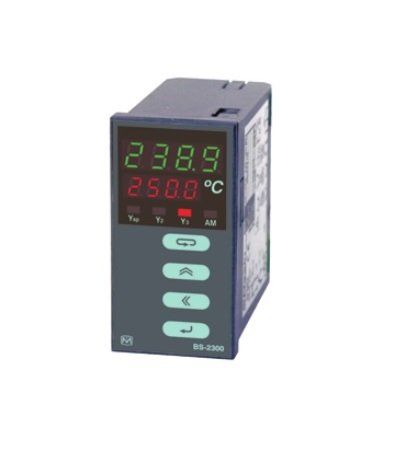

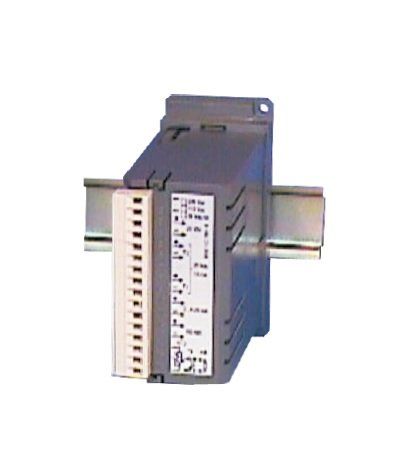

BS-2000 Process indicators and controllersList item 1Panelable process equipment with 1 input and up to 3 output slots (2 relays and analog output) or 3 relays. Includes RS485. Linear menu. Universal entrance. Highlights its ease of use and robustness Models: BS-2100, BS-2200, BS-2300, BS-2400, BS-2500
-
LS-3000 Indicators and process controllersList item 2High performance equipment for a universal signal input. Parametrizable by function blocks. Programmable by software for additional functions. Models: LS-3100, LS-3200, LS-3300, LS-3400, LS-3500
-
DS-4200 Controller - indicatorList item 3Double loop control equipment in 96 x 48 mm format or converter format. Internal control power with advanced configurations. Models DS-4200 / RR, DS-4200 / DIO and DS4500 converter format
-
HS-7300 -MS 5300 Indicators and controllersList item 4Families of equipment with multientry (up to 3 analog inputs), 4 relay outputs, 2 analog outputs, 2 RS485 ports. Ideal for applications that require advanced waterfall type control, or ratio ratio, for example. Customized specific functions. Models MS-5300 and HS-7300 in 48x96 mm The versions of format 96 x 48 are the models HS-7200 and MS-5200. .
-
DAS-8000 Acquisition with displayAcquisition and control module for 8 analog inputs, 8 digital outputs and 8 digital inputs. Ideal for supervision with software without a license. Very robust equipment that is ideal for monitoring rooms, dryers, warehouses, and any process that requires several inputs and local display.
-
MAC 3500DIN rail equipment for PC monitoring or drives with programmed logic. There are versions for analog inputs and versions with digital signals. In option internally simplified models. They are powered at 220 Vac with option to 24 Vac / dc
-
CM-40 Analog temperature transmitterTemperature transmitters, Pt-100 inputs or thermocouples, with 4-20 mA output associated with the measuring range. Automatic cold junction compensation (0 to 50 ºC). Linearized output Pt-100 in all its ranges. It is configured with welding straps
-
CM-440 Temperature transmitterTemperature transmitter for Pt-100 or thermocouples in Rail DIN format. Power 18 .. 35 Vdc of current loop. Precision 0.3% basic. ABS box. Galvanic separation of 1500 VDC between input and output.
List of services
-
Field equipment IP65 FMCControllers or indicators with IP65 Identical characteristics to the process equipment of panel format but assemblies in IP box. Models FMC-4000, FMC-5000 and FMC 8000 with integrated HMI display
-
Programmer of ramps HM-5500 / PRRamp programmer with double entry and double analog output. The recording and visualization of the process is done through a 4.3 "HMII screen intuitively programmed to configure the equipment and its programs, it includes a datalogger function, historical graphs and RS485 Modbus RTU.
-
Basic range indicators N 24List item 1Indicators of a single display (20 mm of height of digits) destined to the measurement of temperature Pt-100 or thermocouples K, J. It also admits inputs of type Vac, Vdc, 4-20 mA or 0/10 Vdc Measures 96 x 48 x 64 mm. Alim to 220 Vac. Others as an option.
-
Indicators - RE72 controllerList item 2Basic universal controller Outputs relay, or transistor, continuous for SSR. PID-ON / OFF control logic with hysteresis. Control step by step. Direct and inverse action. It has a programmer function of 15 programs with 15 segments each. Measures 48 x48 mm.
-
Controller RE 82List item 3Pt-100 universal input controller, thermocouples and analog signals. Relay outputs, transistor, or continuous output for SSR control. Autotuning of PID, ON / OFF control. Timing function. Ramp programmer with 15 programs of 15 segments each. Measures 48 x 96 x93 mm.
-

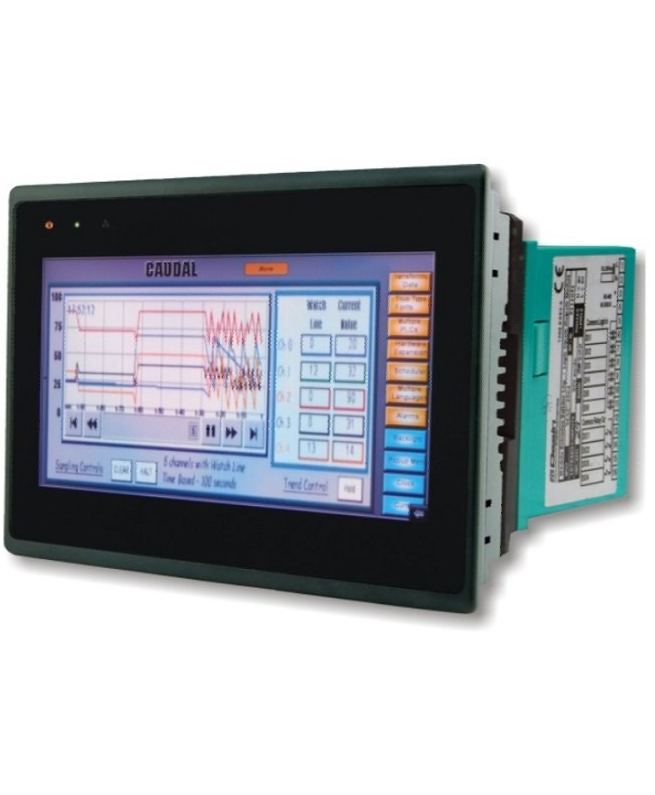

Registrars in HMIList item 4
Data recording modules with HMI screens. Both in compact version and with DIN rail electronics and external screen. Different combinations From 2 input channels. According to inputs, the team will have more internal modules. Alim to 220 Vac. Valid for Pt-100, 4-20 mA or TP probe inputs.
-
ISTA - Room temperature probeAmbient temperature probe Pt-100 with versions including 4-20 mA transmitter. To supervise rooms or environments that are not excessively aggressive. Ranges -40 / 60º. There are several options, direct output Pt100 1 DIN, with precision sensor, with drilled sheath, with 4-20 mA transmitters or with communication protocols.
-
TH-IS485 Temperature and humidity transmitterLow cost transmitter, with 2 x 4-20 mA outputs and RS485 version. By communication you can read the dew point since it is calculated internally. Version with external probe (0.5 m cable). Ideal to monitor areas of non-aggressive environment. Range -20 / + 60ºC and 0/100%. Semiconductor sensor
-
TXP-14 Pressure transmitterPressure transmitter for general applications, ranges 0 .... 1 bar up to 400 bar. Precision 0.5% FSO. Disgraded version. Ideal HVAC applications, mechanical systems, process plants, etc. Ceramic sensor, INOX body. Output 4-20 mA to 2 wires. Mechanical connection 1/2 "G (option, in 1/4" G).
-

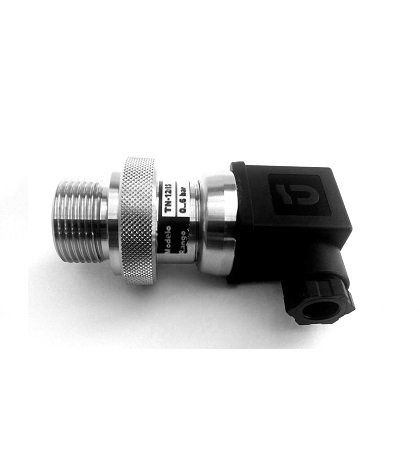

TN12 IS - Membrane pressure transmitterThread level transmitter. Ranges from 0 ... 100 mbar to 0.40 bar. 3/4 "G connection, EXIA version, excellent precision and stability, ideal for INOX compatible fluids.
-
TXP-33 Low Pressure Pressure TransmitterPressure transmitter for general applications. Ranges 0 ... 100 mbar to 0 .. 60 bar outputs 4-20 mA to 2 wires. For liquids and gases. Use in low pressure ranges. Precision 0.35% FSO. Versions: EXia and welded sensor. Materials in contact: INOX.
-

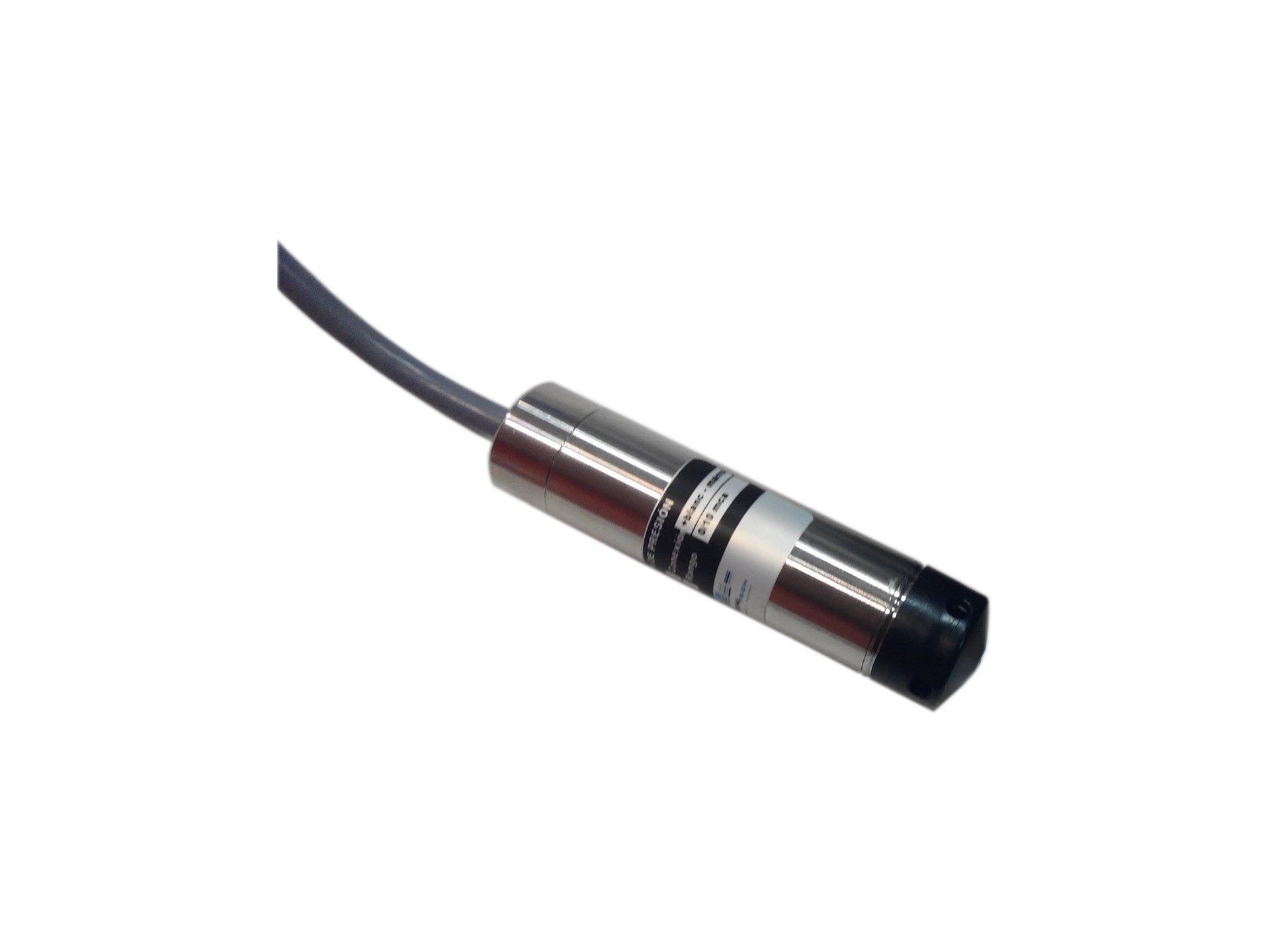

TN1 INOX level transmitterSubmersible transmitter, range 0 ... 4 mH2O up to 250 mH2O. Diam 27 mm. Stainless steel body. Excellent precision. Different types of cables, PVC, PUR or FEP. Ceramic sensor and INOX body. Output 4-20 mA
-
TN5 PP level transmitterTransmitter in plastic for aggressive media. Ranges from 0..4 mH2O to 0 ... 100 mH2O. Diam 35 mm. Ceramic sensor (96%) with PP housing. Different types of PVC-PUR-FEP cable. Accuracy <0.5% FSO. Output 4-20 mA to 2 wires.
-

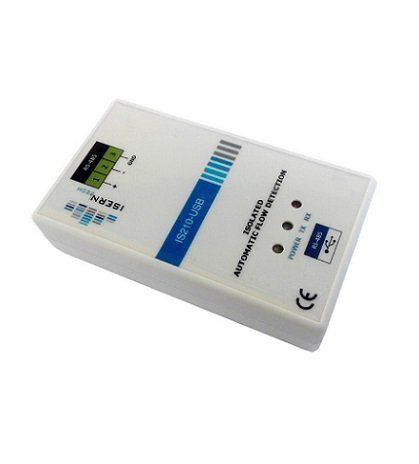

IS210 USB-485 converterUSB-RS485 communication converter. It is powered by the same USB connector (no power required). Ideal to link a network of equipment with RS485 communication to a computer. Small dimensions
-

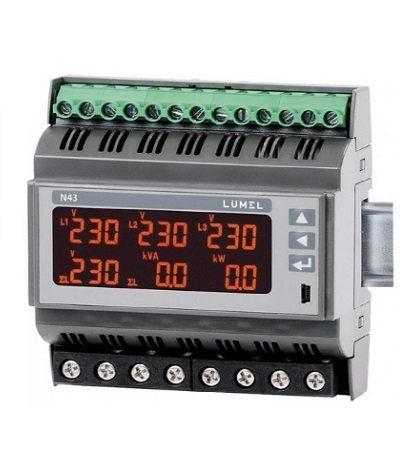

N43 Measurement of electrical consumptionDirect or indirect measurement of consumption of three-phase lines (up to 63 A). Measures RMS both voltage and current. Active, reactive and apparent power. Active and reactive energy. Power and frequency factors, Includes RS485 for monitoring or registration from a PC. Configurable alarms Small dimensions 205x110x60 mm.
-
THR 340 / CM Transm T HR para cámarasTemperature and humidity transmitter for cameras. Waterproof case IP65 Temperature sensor: Pt100 Working ranges: 0 / 50º and 0/100% (others on demand). Response time + 45 sec. Alim 12 ... 40 Vdc Sensor filter FA (open) Others as an option.
-
THR-370 / PR - process rangeTemperature and humidity transmitters with 2 x 4-20 mA output for process. IP 65 aluminum case and high temperature version (up to 180º C). Version with remote probe. They include: Sintered copper filter. Working ranges: 0/50, -30 / 70, 0/100, 0/150.
-
TVV-280 ANEMÓMETROAnemometer with 3 cups with 4-20 mA output. Range 0.2 to 20 m / s. 4-20 mA output associated with the range. Alimn to 24 Vdc.
-

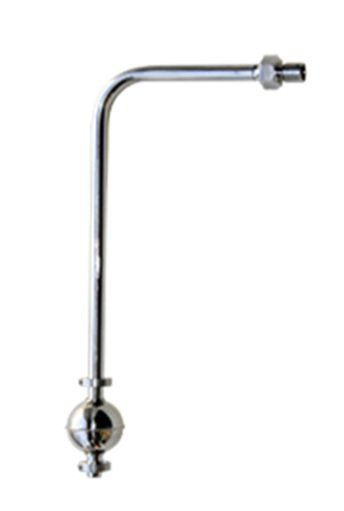

MAGNETIC LEVELS K-RANGELevel detection in a simple way based on a float. Different materials, INOX, PVC, etc. 1 or more contacts Different formats, direct cable exit or with head. Version with analog outputs.
-
Nivel sólidos por paletas rotativas NIR9Rotary blade level detector. When the equipment is connected, the palette rotates and when the material does not allow it to rotate, activates the relay detection signal. Different lengths and formats. Materials: Stainless steel and aluminum T max 200ºC. In option, ATEX versions. Various connections.
-

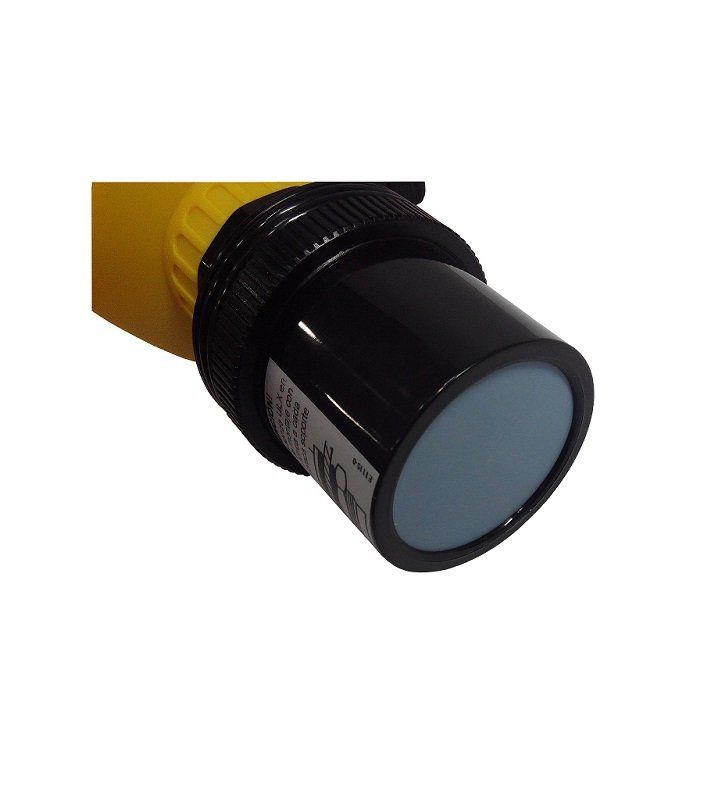

NUS ultrasound transmitter
Tecnología de última generación en este transmisor de ultrasonidos compacto. SIn display.
Rango: 0.25 a 6 m
T max 80 ºC
Salidas 4-20mA con reles adiconales.
La versión con display permite una configuración mas avanzada para eliminar señales falsas de lectura.
HMI SCREENS, VISUALIZATION AND FLEXIBILITY
When our control process requires local control points, or visualize several variables, it is best to use an industrial touch screen.
We offer screens programmed according to your specifications.
Using WI-FI or Ethernet technology directly, we can connect to the screen and access your data or make changes in password, for example.
POWER UNITS

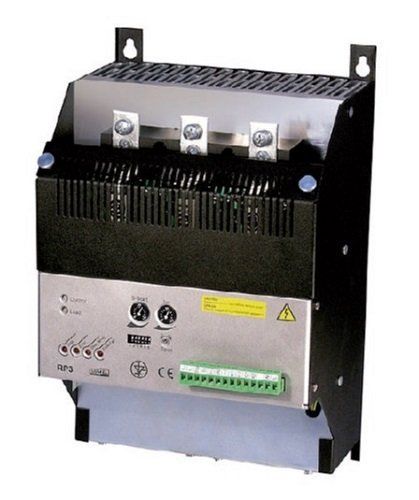

THREE-PHASE POWER UNITS UPTF-RP3
Power control for resistive and inductive loads
Maximum output current 450 A
Limitation of load bearing
Control by impulses, by continuous signal or by potentiometer, Alarm outputs with relays.
Current outputs from 40 A to 450 A.
